Product Brief Introduction (approx. 500 characters)
This 8‑inch Tuya Smart Central Control Panel is a whole‑house smart hub and background music system in one. It lets you control lights, curtains, temperature, and 410,000+ Tuya devices via touch, voice (Alexa built‑in), or app. With a built‑in Zigbee gateway, Bluetooth mesh, and IR blasters, it replaces multiple wall switches, speakers, and remotes. Runs on Android 11 with 2GB RAM + 16GB storage, dual‑band WiFi (2.4/5GHz). Perfect for smart homes, hotels, and modern apartments – enjoy music from Spotify or local uploads.
Detailed Description with Image Labeling
【 Smart home control music system】
The home screen shows *Tuesday 10th Feb. 09:26, 8°C, 64% humidity, -16°C Snow*. You see Full Light, Sleep Mode, Work Mode, and a Curtain switch for Bedroom with Open/Pause/Close controls. This panel integrates WiFi, works with Alexa, 8‑inch display, Tuya, Zigbee, and Smart Life.
【8inch tuya smart central control screen】
Brand SIXWGH – a home multi‑function background music host system. Features Built‑in Zigbee gateway, Whole house smart central control panel, Source factory quality assurance. The screen shows Switch, *80*, *45*, Open, Pause, Closed.
【8Inch 2+16G Android 11 System Audio Wall Amplifier】
Highlights: Tuya, WiFi, Zigbee, built‑in Alexa, Smart Life, works with 2.4GHz/5GHz dual‑band.
【Smart home control music system】
Shows Switch, Main light, Vice lig, Full Light, Bedroom Online. Modes: Travel, Snow, Sleep, Work. Curtain switch with Open/Pause/Close. Logos: Alexa, 8inch, Tuya, Zigbee, Smart Life.
【TUYA Smart Home Control Panel】
Same as Fig3: 8Inch 2+16G Android 11, Audio Wall Amplifier, dual‑band WiFi, built‑in Alexa.

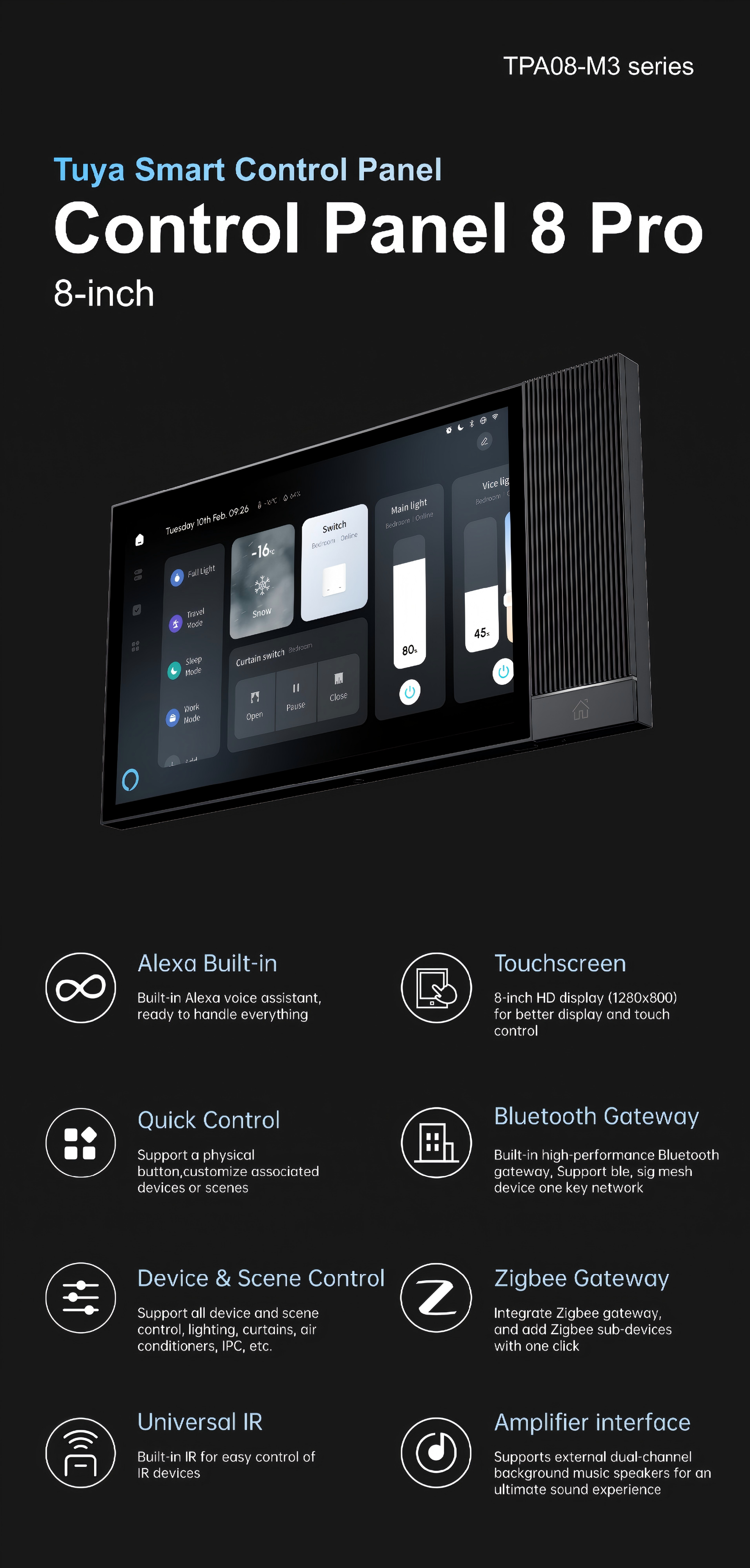

【TPA08-M3 series, Control Panel 8 Pro】
Key specs: 8‑inch HD display (1280×800). Alexa Built‑in + Touchscreen. Quick Control: physical button for custom scenes. Bluetooth Gateway: supports BLE/SIG mesh one‑key network. Zigbee Gateway: add Zigbee sub‑devices with one click. Universal IR for IR devices. Amplifier interface: external dual‑channel speakers.
【Powerful performance】
RK3566 Quad‑Core 1.8GHz processor. 2GB RAM + 16GB storage. Dual‑band WiFi (2.4GHz & 5GHz).
【Audio Upgrade】
Integration with Spotify – enjoy millions of songs. Local music upload support.
【Built‑in High‑Fidelity Speakers & Amplifier】
Two 2W built‑in speakers (professionally tuned). Amplifier interface for external dual‑channel background music speakers – theater‑grade audio. Zigbee & BLE Mesh Gateways + 485 interface – super host for whole house.
【Massive ecosystem & IR control】
Controls over 410,000 Tuya ecosystem devices (cross‑brand, cross‑protocol). Strongest IR: 3 infrared LED transmitters for all‑round remote control of TV, AC, etc.

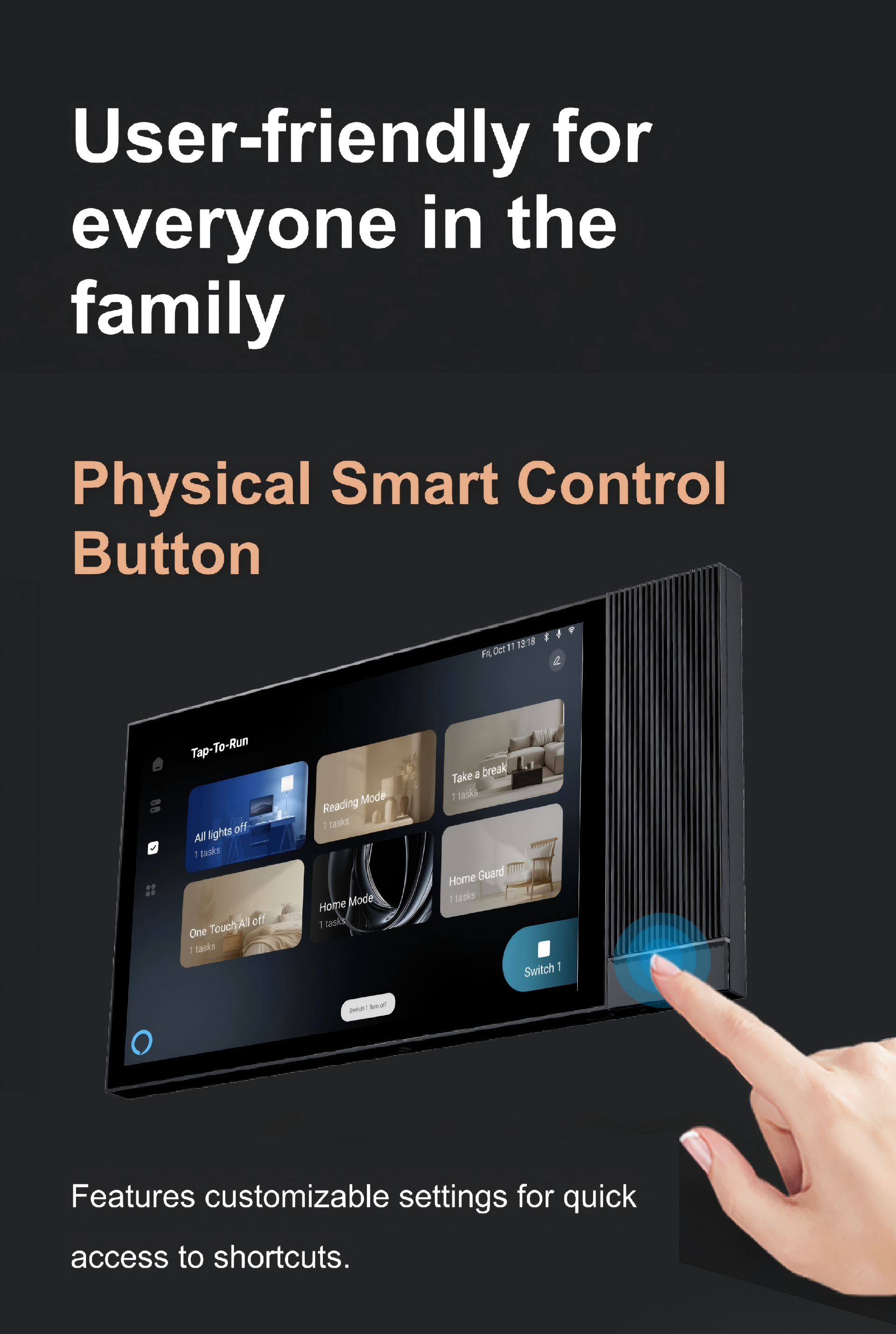

【User‑friendly physical button】
Physical Smart Control Button with Tap‑To‑Run. Customizable settings for quick shortcuts – ideal for all ages.
【Dynamic Music Screensaver & Cloud Photo Frame】
Combines music with visual effects – a decorative piece. Cloud Photo Frame showcases cherished moments. Personalized aesthetic.

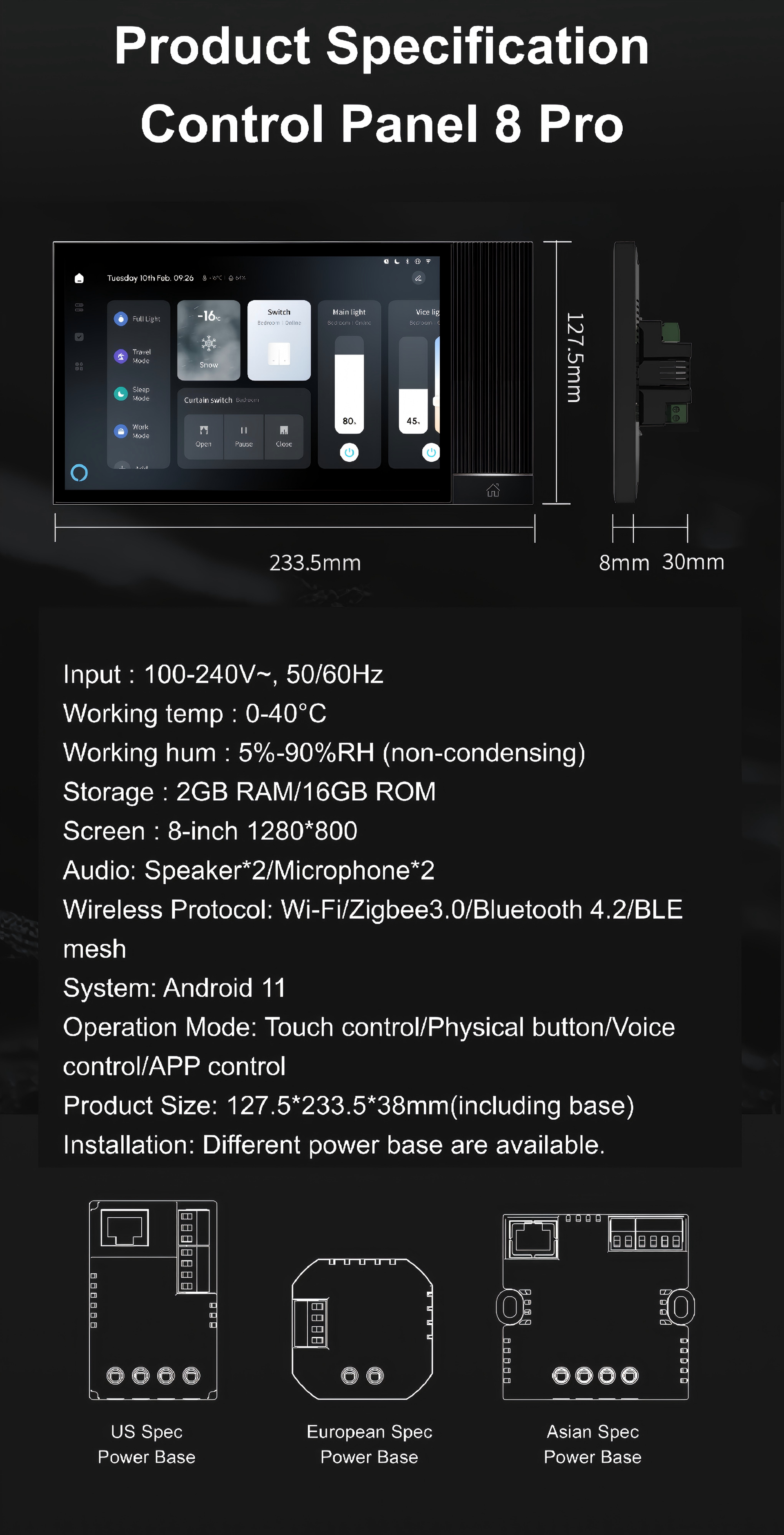

【 Product Specification & Dimensions】
-
Input: 100‑240V~, 50/60Hz
-
Working temp: 0‑40°C / Humidity: 5%‑90%RH
-
Storage: 2GB RAM / 16GB ROM
-
Screen: 8‑inch 1280×800
-
Audio: Speaker×2 / Microphone×2
-
Wireless: Wi‑Fi / Zigbee 3.0 / Bluetooth 4.2 / BLE mesh
-
System: Android 11
-
Operation: Touch / Physical button / Voice / APP
-
Product size: 127.5×233.5×38mm (including base)
-
Installation: Different power bases (US / EU / Asian spec)
Key Advantages
-
All‑in‑one hub – Zigbee + Bluetooth + IR + WiFi – no extra gateways needed.
-
Alexa built‑in – Voice control lights, music, scenes without external Echo.
-
High‑fidelity music system – Spotify, local music, external speaker support.
-
Massive ecosystem – Controls 410,000+ Tuya devices across brands.
-
Powerful hardware – RK3566, 2+16G, Android 11 – smooth and fast.
-
Dynamic screensaver & cloud photo frame – Decorative and personal.
-
Physical shortcut button – One‑tap scenes for everyone.
Application Areas
-
Whole‑home smart control – Living room, hallway, master bedroom – central hub.
-
Background music system – Kitchen, bathroom, bedroom – multi‑room audio.
-
Hotels & luxury rentals – Voice/touch control + music for guests.
-
Offices & conference rooms – One‑tap scenes, IR control of AC/projector.
-
Smart home showrooms – Demonstrate full Tuya ecosystem.
-
Family homes – Physical button and large icons for elderly and children.
FAQ (5 questions)
1. Does this panel require a neutral wire?
Yes, it needs 100‑240V AC with neutral + live. Multiple power bases (US/EU/AS) are included – choose the right one for your region.
2. Can I use Alexa without internet?
Local Zigbee/Bluetooth automations work offline. Full Alexa voice requires internet.
3. How many Zigbee devices can I connect?
You can add 100+ Zigbee sub‑devices (sensors, plugs, curtains) via one‑click pairing.
4. Does it support Spotify and external speakers?
Yes. Spotify integration is built‑in. You can also upload local music and connect dual‑channel external speakers via the amplifier interface for theater sound.
5. Can I control IR devices like old TV or AC?
Yes. Three powerful IR transmitters provide 360° coverage – learn any IR remote code and control from the panel or app.
